2 inch Sapphire Ingot

2 inch Sapphire Ingot is an alumina crystal used to produce sapphire substrate. The application of sapphire ingot is the application of sapphire. As long as we understand the performance of sapphire

0.0 (0 Reviews)

~~$100.00~~ $1.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Description

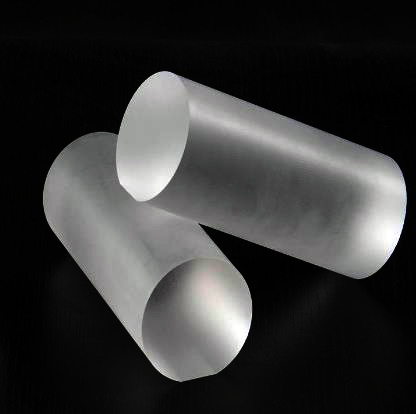

2 inch Sapphire Ingot
Sapphire ingot is an alumina crystal used to produce sapphire substrate. The application of sapphire ingot is the application of sapphire. As long as we understand the performance of sapphire, we can understand the application of sapphire ingot. Sapphire has hexagonal lattice structure, and many properties are determined by its crystal orientation. Through the growth of epitaxial films, different crystal orientations will show different lattice matching. Sapphire has certain birefringence characteristics, and special crystal axes are used in some optical fields.

Sapphire crystal material is a crystal with a 60000 lattice structure formed by high-purity alumina (Al2O3) with purity greater than 99.999% through high-temperature melting and crystallization in a long crystal furnace. It has the properties of high sound velocity, high-temperature resistance, corrosion resistance, high hardness, high light transmittance, and high melting point (2050 ℃), so it is often used as optical elements, infrared devices High-intensity radium radiation material, and masks material.

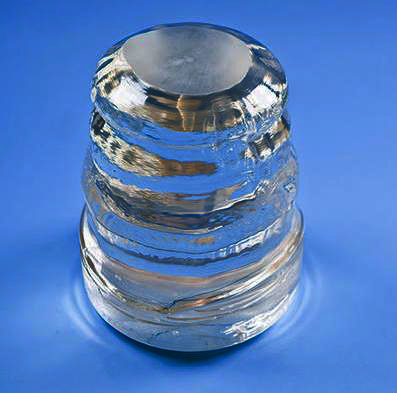

WDQ OPTICS offers single-crystal sapphire ingots grown with the Kyropoulos technique. With this technique, our sapphire ingots are of high quality (LED grade) and low defect density. We supply a comprehensive choice of single-crystal ingots including 2-inch, 4-inch, 6-inch , and 8-inch.

Specification Item	2 Inch Sapphire Ingot
Primary Flat Orientation	A-Plane(1120)±0.1°
Orientation of C-plane Surface	C-plane(0001)±0.1°
Diameter	50.8±0.1mm
Circularity	±0.02mm
Straightness	±0.02mm
Primary Flat Length	16.0±0.5mm
Bubbles	≦15% Mark
Effective Length /pc	50~200mm /pc
