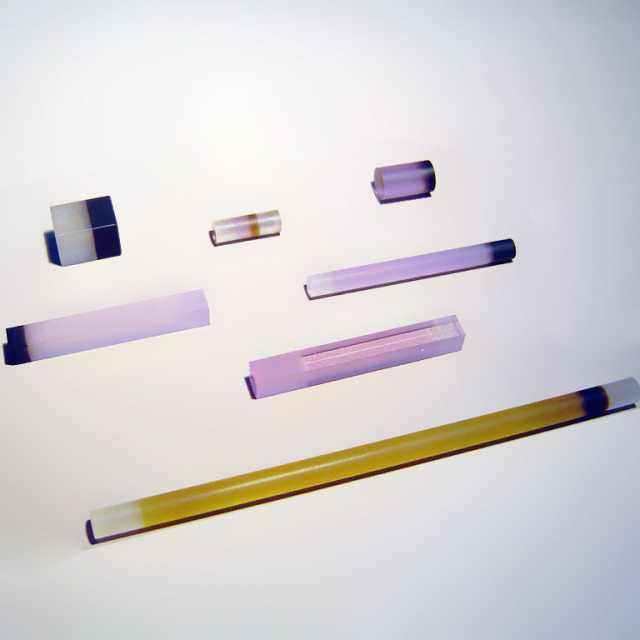

Diffusion Bonding Laser Crystals

Diffusion Bonding Crystals are crystals consisting of two, three or more parts with different types, Bonding Crystals are often used to decrease thermal lens effect, that is conducive to the stability of lasers and high-power laser operation.

0.0 (0 Reviews)

~~$1,000.00~~ $1.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Description

Diffusion Bonding Laser Crystals
Diffusion Bonding Crystals are crystals consisting of two, three, or more parts with different types, Bonding Crystals are often used to decrease the thermal lens effect, which is conducive to the stability of lasers and high-power laser operation. This bonding technology in laser applications can not only greatly improve the laser performance and beam quality, but is also be conducive to the integration of laser systems and access to large-size crystals.

Specifications:

Damage	≤ 3.0 × 10^-3 cm^-1	Flatness	< λ/10
Parallelism	≤ 10"	Perpendicularity	≤ 5’
Surface Quality	10/5 (MIL-O-13830A)	Optical Quality	Interference fringes ≤ 0.125/inch
Size	Diameter: 2～18 mm, Length 3～200 mm	Dimensional Tolerances	Diameter:+0.000/-0.05mm, Length ± 0.5mm Chamfer:<0.1 mm @ 45º
Coating	Upon request of the customer

Modules or Types:

Following diffusion bonding crystals are available:

Bonding Crystals Types	Doping Concentration(atm) or Optical Density (cm-1)	Aperture (mm)	Length (mm)
YAG+Nd:YAG	Nd:0.6~1.2%	2×2~20×20	2~200
YAG+Cr4+ :YAG	0.6~7	2×2~20×20	2~50
Nd :YAG + Cr4+:YAG	Nd:0.6~1.2% / 0.6~7	2×2~20×20	2~200
YAG+Nd :YAG+YAG	Nd:0.6~1.2%	2×2~20×20	3~200
YAG+Nd:YAG+Cr4+:YAG	Nd:0.6~1.2% / 0.6~7	2×2~20×20	3~200
YAG+Nd:YAG+Cr4+:YAG+YAG	Nd:0.6~1.2% / 0.6~7	2×2~20×20	5~200
Cr:YAG+Nd:Ce:YAG	0.6-7/Nd:0.9~1.3% Ce:Nd=1:10	2x2~10x10	5~130
YAG+Cr4+:YAG+Nd:Ce:YAG+YAG	0.6~7/Nd:0.9~1.3%, Ce:Nd=1:10	2×2~10×10	5~130
YVO4+Nd:YVO4+YVO4	Nd:0.1~3%	2x2~10x10	1~20
YVO4+Nd:YVO4+YVO4	Nd:0.1~3%	Dia2~10	3~20

Some diffusion bonding rods modules example as a reference:

Diffusion Crystals Modules	Diffusion Bonding Types	Descriptions
YAG-B-D6.35x105-T20	Nd:YAG+Cr: YAG	Nd: YAG D6.35x105mm; HR1064nm Cr:YAG T0=20%; PR=40%
YAG-B-D3x50-T40	Nd:Ce:YAG+Cr: YAG	Nd: YAG D3x50mm; HR1064nm Cr:YAG T0=40%; PR=40%
YAG-B-D3x10-T40	Nd:YAG+Cr: YAG	Nd: YAG D3x7.5mm; HR1064nm Cr:YAG T0=40%; PR=40%
YAG-B-D3x10-T45	YAG+Nd:YAG+Cr: YAG	YAG D3x0.7mm; HR1064nm; Nd: YAG D3x7.3mm; Cr:YAG T0=45; PR=45%
