Optical Sapphire Lenses Sapphire Convex Lens

Optical Sapphire Lenses Sapphire Convex Lens is suitable for high-power, high-pressure applications, and vacuum or corrosive gas environments. Sapphire is a single crystal form of alumina and Al2O3.

0.0 (0 Reviews)

~~$100.00~~ $1.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Description

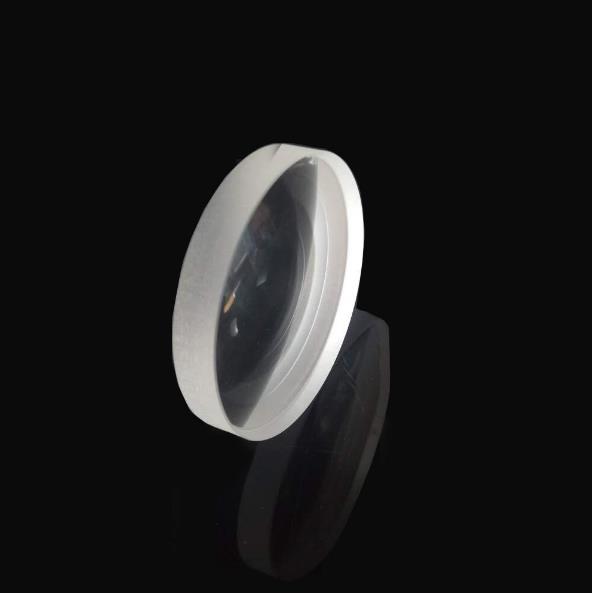

Optical Sapphire Lenses Sapphire Convex Lens
Sapphire convex lens is suitable for high-power, high-pressure applications, and vacuum or corrosive gas environments. Sapphire is a single crystal form of alumina and Al2O3. The material is very hard and resistant to strong acids. It has high compressive strength, high melting point, and excellent thermal conductivity. The transmission range is from 150 to 5000 nm.

Typical applications of sapphire lenses include:
• IR laser optics
• Imaging optics
• Chemical & erosion resistant front surface optics
• Focusing Optics

Specifications of Sapphire Convex Lens

Diameter:	>1.0mm
Radius:	>1.0mm
Dimension Tolerance:	±0.1mm
Thickness:	>1mm
Thickness Tolerance:	±0.1mm
Surface Quality S/D:	40/20
Focal Length Tolerance:	0+/- 5% @ 633nm
Centration:	<3’
Clear Aperture:	>90%
Coating:	AR coating or as request

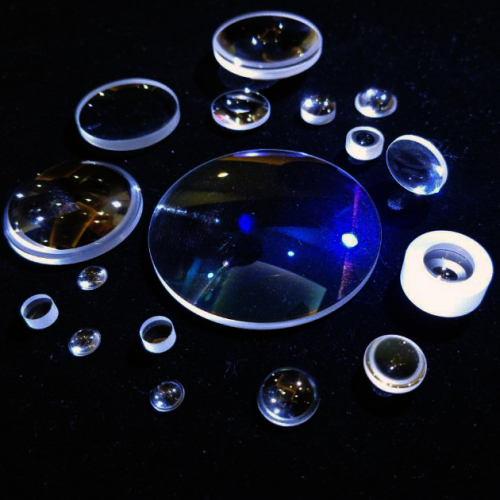

We have lots of Sapphire Lenses In Our Stock:
Sapphire Lenses Plano-convex (pcx) Ø12.7mm*fl20
Sapphire Lenses Plano-convex (pcx) Ø12.7mm*fl30
Sapphire Lenses Plano-convex (pcx) Ø15mm*fl20
Sapphire Lenses Plano-convex (pcx) Ø15mm *fl30
Sapphire Lenses Plano-convex (pcx) Ø15mm*fl40
Sapphire Lenses Plano-convex (pcx) Ø15mm *fl50
Sapphire Lenses Plano-convex (pcx) Ø15mm*fl60
Sapphire Lenses Plano-convex (pcx) Ø25.4*40m
Sapphire Lenses Plano-convex (pcx) Ø25.4*50m
Sapphire Lenses Plano-convex (pcx) Ø25.4*50.8m
Sapphire Lenses Plano-concave ( Plcc) Ø12.7mm*fl20
Sapphire Lenses Plano-concave ( Plcc) Ø12.7mm*fl30
Sapphire Lenses Plano-concave ( Plcc) Ø15mm*fl20
Sapphire Lenses Plano-concave ( Plcc) Ø15mm *fl30
Sapphire Lenses Plano-concave ( Plcc) Ø15mm*fl40
Sapphire Lenses Plano-concave ( Plcc) Ø15mm *fl50
Sapphire Lenses Plano-concave ( Plcc) Ø15mm*fl60
Sapphire Lenses Plano-concave ( Plcc) Ø25.4*40m
Sapphire Lenses Plano-concave ( Plcc) Ø25.4*50m
Sapphire Lenses Plano-concave ( Plcc) Ø25.4*50.8mm

WDQ OPTICS can design and produce various specifications of optical elements according to customer requirements. The company adopts high-low polishing combined processing technology, which can not only meet the product requirements but also take into account the requirements at the same time; The products produced by the company are used in digital camera lenses, microscopes, level gauge, vehicle lens, scanning lenses, projector, gun aiming, endoscope, laser rangefinder, and other high optical instruments.
