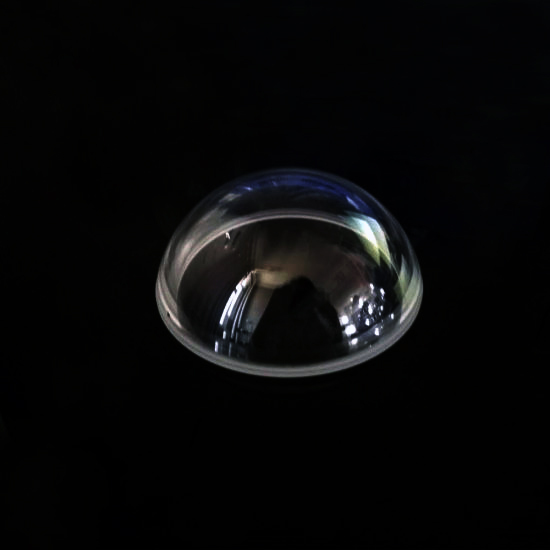

Sapphire Domes

Sapphire Domes are hemispheres. The two optical surfaces are an equal thickness apart, creating a naturally strong shape that gets tougher under pressure. This makes dome windows ideal for underwater environments and in applications such as camera dome

0.0 (0 Reviews)

~~$100.00~~ $1.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Description

Sapphire Domes
Custom fabricated sapphire optical domes that provide highly effective front surface protection for special guidance systems are available for rapid delivery from WDQ OPTICS. Sapphire Optical Domes feature Mohs 9 hardness, which is second only to diamond

Dome windows are hemispheres. The two optical surfaces are an equal thickness apart, creating a naturally strong shape that gets tougher under pressure. This makes dome windows ideal for underwater environments and in applications such as camera dome ports and submersible windows.

BK7 or K9L domes are used primarily in meteorology applications. BK7 offers excellent transmission from 300nm up to 2µm. BK7 is a relatively hard material, with excellent chemical durability.
UV fused silica domes: For applications operating in the deeper UV range, Worldhawk offers a range of UV fused silica domes. Fused silica domes are commonly used in underwater applications at extremely high pressures.

Sapphire domes: For infrared applications, we can provide sapphire domes. Sapphire is an extremely hard material with a transmission of over 80% in the 2-5µm wavelength range. As with fused silica, sapphire is able to withstand extreme pressures, making it the perfect material for underwater camera and missile fairing applications.
Specification

Material	N-BK7, H-K9L, UV Fused Silica, Sapphire, IR crystal
Diameter	5mm-150mm, 150-300mm
Diameter Tolerance	+/-0.1mm
Thickness	>2mm
Thickness Tolerance	±0.2~0.1mm
Center Deviation	3-5'
Surface Accuracy	1L 1/2L 1/4L or According to size
Surface quality	80/50 60/40
Coating	Both side Antireflection Coatings
Chamfers	0.2 x 45° typical

Assurance
Advanced testing equipment and methods are an important guarantee for the production of high-precision products.
Advanced processing equipment and a complete production system ensure that we can effectively control every aspect of the production process to ensure product quality, and reduce losses and reduce costs!
