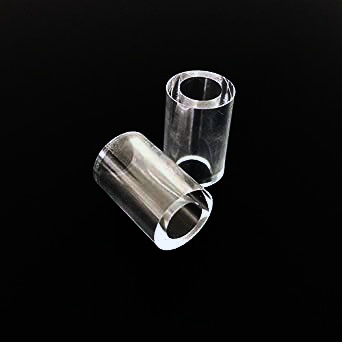

Sapphire Tubes

Sapphire Tubes are made of synthetic sapphire possess the unique combination of excellent optical, physical and chemical properties.

0.0 (0 Reviews)

~~$100.00~~ $1.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Description

Sapphire Tubes
Sapphire tubes are made of synthetic sapphire possess a unique combination of excellent optical, physical, and chemical properties.

Sapphire Is The Hardest Material Next To Diamond. It's Almost Impossible To Make A Diamond Tube Or Rod. Sapphire Is The 1st Choice Because:
-Sapphire tube is the best high-pressure vessel and transportation pipeline in many high-pressure systems. Sapphire tubes can handle extreme pressures while allowing safe observation and spectral analysis of fluids and gases.
-Sapphire tubes can be used to accommodate sensitive sensors in harsh environments to protect sensors from pressure and mechanical abuse.
Sapphire rods have advantages in rod bearing and confrontation applications involving high wear and tear while maintaining dimensional stability.

Features of Sapphire Tubes
1. High transparent to wavelengths of light between 0.3 μm (UV) and 5 μm (IR)
2. Extremely hard and scratch resistance
3. Extremely high melting temperature (2030°C)
4. Excellent thermal conductivity and heat resistance
5. Exceptional chemical stability and corrosion resistance
6. Stepanov growth Method provides the ability to produce various shapes sapphire tubes with minimal or no grinding.
7. Ideal material for the applications of Lamps, instruments, and semiconductor processing.

Specification for Sapphire Tubes

Inner Diameter:	10mm ~ 180mm
Outer Diameter:	20mm ~ 200mm
Diameter Tolerance :	0.004mm ~ 0.06mm
Length:	10mm ~ 250mm
Length tolerance:	±0.01mm
Surface quality:	40/20
Custom shape:	open ends tube, plugged tube, bonded end caps tube, custom shape tubes with angles, slots or holes

Application of sapphire tube
Sapphire tube is an ideal material for a wide range of industrial applications, such as semiconductor processing, testing and analysis, lamps, and lamp housings. Typical applications of testing and analysis include biological and chemical sample analysis, nuclear magnetic resonance spectroscopy, mass spectrometry, blocked tube, Thermo optical temperature measurement, and online petroleum processing analysis. Sapphire tubes can also be used as plasma containment tubes, process gas injectors, thermocouple protection, water treatment and high-intensity lamps.
Sapphire tube has high mechanical strength. The sapphire tube with thick wall can be used to accommodate the sensor or laser and protect the sensor or laser from extreme pressure. Its outer diameter and inner diameter can be polished to realize laser emission and reflected light measurement. Sapphire tubes are ideal for high-pressure systems and vacuum applications.
Sapphire tube is the preferred material for plasma protection because of their chemical inertia and corrosion resistance. Chemical resistance enables sapphire tubes to withstand extreme plasma without generating particles.
Sapphire tube maintains its high strength and shape under high temperature and high pressure. Sapphire lamp tube has high thermal stability, good thermal conductivity, and excellent transparency. It is an ideal lamp material to support ultraviolet, visible, and infrared applications in harsh environments.

WDQ OPTICS provides finely ground and polished sapphire tubes for a variety of applications. Custom shapes include angles, slots, holes, and adhesive shapes to meet customer accuracy specifications. The specification of the sapphire tube we can realize is: the inner diameter starts from 0.40mm, the wall thickness reaches 20mm, the length reaches 600mm, and the surface quality reaches 40 / 20.
